BigJoe3
|
Stock Alert !
|
|
Attention : This model is not on stock, please enquire for availability
|
|
|
|

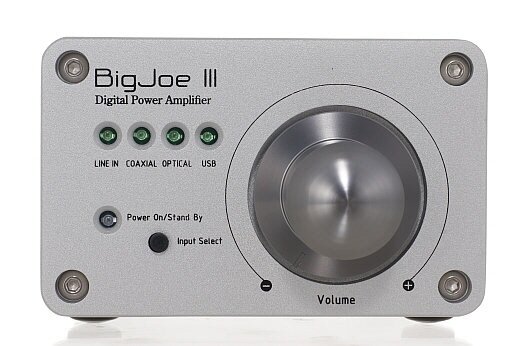

BigJoe3 Digital Power Amplifier
The Big Joe III is a Digital Class-D Power Amplifier with 20w power output. The Big Joe III accepts a variety of inputs including USB, Toslink Optical, Digital Coax and Analog line-in. It features High quality WIMA capacitors and inductor, Fi-reclock® technology for Jitter reduction.
Do not judge by dimensions ! This is super efficient engineering, bringing you high-end sound.
|
|
|
|
|
|
Take a closer look ! (click to view)
|
|
|
|
|
Specifications
|
 |
Amplifier Structure : True digital signal path, Class-D
|
|
Power Structure : Soft-Start circuit, Single-supply
|
|
Power Mode : Stand by and Power on mode
|
|
Input Select : USB / Coaxial / Optical / Line in
|
|
Power Output : 8ohm @ 20W
|
|
Circuit Protect : Output short / over current / over and under voltage / temperature protection
|
|
Reclock : Includes Fi-reclock® technology to reduce jitter
|
|
USB Support Format : 16-bit, 32 / 44.1kHz / 48kHz
|
|
SPDIF Support Format : 24-bit, 96kHz (MAX)
|
|
Main Amp : TI - TAS5706
|
|
ADC Chip : Cirrus - CS5343
|
|
USB Chip : CMedia - CM102
|
|
Receiver : TI - DIR9001
|
|
Housing dimensions : 117 x 80 x 50 mm (D x W x H). Housing only without parts 'sticking out' like volume buttons, connector parts, etc.
|
|
Weight : 331 gram (without external power supply)
|
|
Connectivity
|
|
USB interface USB 1.1 minimum
|
|
Digital Input : Coaxial and Optical
|
|
Analog Input : 3.5mm mini jack
|
|
Output : RJ45 jack (stereo) to Speakers
|
|
System Requirements
|
|
Compatible with all equipment with an analog or digital out
|
|
Intel® Pentium® 2, Celeron® 800MHz or higher computer system, Mac and Linux
|
|
Microsoft® Windows 2000® (Service Pack 4) or Windows® XP (Service Pack 1)
|
|
128MB RAM
|
|
Available USB port
|
|
Scope of supply
|
|
Big Joe III
|
|
DC19V 3.42A power adapter
|
|
Speaker cord
|
|
USB wire
|
|
User manual
|
|
Warranty card
|
|
Wrench
|
|
