Fireye Mini

The Fireye Mini Ultra Miniature Headphone Amplifier for use with portable equipment. Boost up volume and dynamics and put a Fireye Mini in between your headphone and your media player. You will not believe you are still listening to the same player. The Fireye Mini is small and is an ideal travelpartner. The built-in lithium battery will give you up to 24 hour playback time and you can recharge it via a computer USB port. The Fireye Mini will give the extra power to hear your music with the dynamics that you are missing now, also with a BIG harder to drive headphone !

Note : We only have white color on stock!










Choose Color:
Quantity:   pce




Attention !

The Fireye Mini is only suitable for amplifying the signal to a headphone.
This unit is not suitable for amplifying signal that is going to another amplifier, like car radio, etc. You can not connect the output of Fireye Mini direct to any normal speaker. Only use the Fireye Mini with a headphone with impedance 32 to 600 Ohm.


Fireye Mini Ultra miniature headphone amplifier for use with portable equipment

Technical Specifications
Amplifier Structure : Class-A / B amplifier
Power Structure : Built in battery power supply
Headphone Impedence : 32 ohm to 600 ohm
Circuit Protect : Output shortcircuit / temperature protect
Usage Time : With 100% full battery arround 24hrs, depending on volume used.
Charging Method : Using PC or USB adapter to charge
Charging Time : Fully charging (3hrs), fast charging (1.5hrs = 80%)
Main OPAmp : TI - DRV601
Audio Performance (1kHz sine wave, 2Vrms output, 24-bit / 48kHz)
dB-Weighed Frequency response (From 40Hz to 15kHz) : 40Hz +0.1dB, 15kHz -1.67dB
Actual Frequenxcy response 20Hz to 20 kHz
Noise level (1kHz, A-Weighted) : -110.5dB
Dynamic range (1kHz, A-Weighted) : 110.4dB
THD% : 0.0068%
Stereo crosstalk : -96.0dB
Housing material : Shock absorbing flexible silicone.
Housing color : 5 colors available : Red, Black, White, Green, Purple

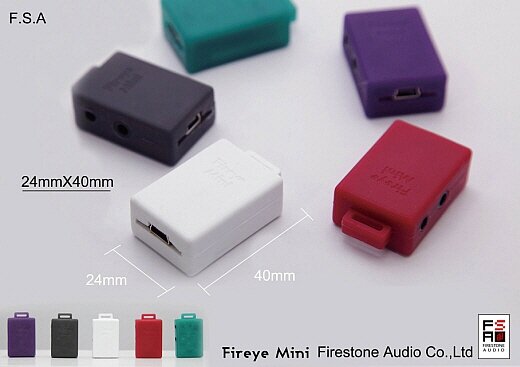

Dimensions : 40 x 24 x 14 mm (D x W x H).
Weight : 14 gram (without cables)

Connectivity
Line In : 1 x 3.5mm phone jack
Headphone Output : 1 x 3.5mm phone jack
1 mini USB jack for charging

System Requirements

An stationairy or portable PC, Media Player, Game Console, SmartPhone or MP3-Player or any other equipment with Line-out or Pre-Amplified Output.

Scope of Supply
Fireye I MINI
USB wire
3.5mm phone wire
User manual
Warranty card

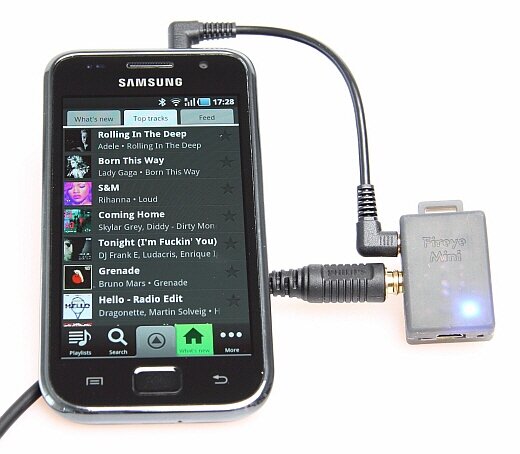

Turn your portable player into a power house use it with Android, iPhone, iPad, iPod, Game console, MP3 - or any other portable player.

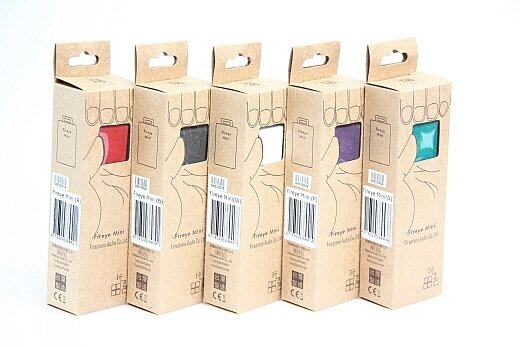

Fireye Mini Come in 5 colors : Red, Black, White, Purple, Green
