Fubar2-MKII
|
Our most underestimated DAC !
|
|
With a sound quality very near our SpitfireHD, the Fubar2-MKII is our most underemstimated USB-DAC ever. If you agree that "Pure CD-Quality" is enough, take this one. Did you know that every normal CD in your cabinet is 16Bit/44.1kHz ? Even if you rip it to FLAC losless, it will never get higher then 16Bit/48kHz. The Fubar2-MKII will astonish you for sure.
|
|
|
|

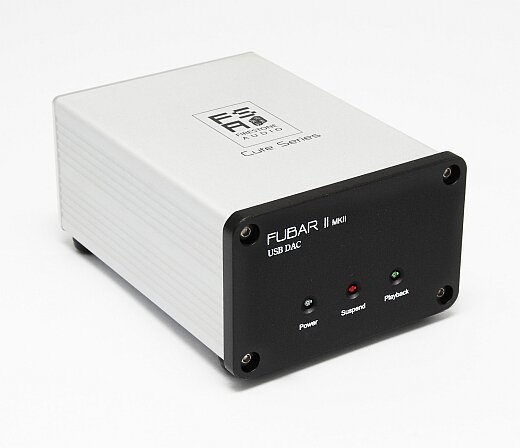

This is the Brand New Fubar2-MKII USB DAC 16Bit/48kHz. Only available with Black faceplate !
Stream your entire music library from you PC direct to your audio system, in hifi quality. To enjoy high quality music from your computer has never been easier. Plug and play without any drivers when using with Linux, Mac OS or PC Windows system.
|
|
|
|
|
|
Take a closer look ! (click to view)
|
|
|
|
|
Plug the USB cable of your Fubar2-MKII in the USB port of your PC and it will grab the audio, still in digital format, from your system and bypass the soundcard. The Fubar2-MKII external DAQ, will stream the audio in high-end quality to any amp or preamp from you existing audio system or to any (pre)amp in the amazing Firestone range. Now you can stream your complete music library in high quality. The Latest Fubar2-MKII USB DAC has an improved power regulation and LPF circuit. The analog output is using a NS-LM4562 opamp. The special designed power supply section provides a minimum interference, to provide silent audiophile quality.
|
Specifications
|
 |
Amplifier Structure : Low pass filter with 2Vrms output
|
|
Power Structure : Virtual-Ground power supply
|
|
Support Format : 16-bit, 32 / 44.1kHz / 48kHz
|
|
Circuit Protect : Output short / over current protect
|
|
Characteristic : Built in high quality component with :
|
|
WIMA capacitor
|
|
MELF resistor
|
|
BC electrolytic capacitor
|
|
Receiver Chip : TI - DIR9001
|
|
USB Chip : TI - PCM2704
|
|
DAC Chip : TI - PCM1754
|
|
LPF OPAmp : NS - LM4562
|
|
Audio Performance (1kHz sine wave, 2Vrms output, 16-bit / 48kHz)
|
|
Frequency response (From 40Hz to 15kHz) : 40Hz +0.01dB, 15kHz -0.12dB
|
|
Noise level (1kHz, A-Weighted) : -96.1dB
|
|
Dynamic range (1kHz, A-Weighted) : 96.1dB
|
|
THD% : 0.012%
|
|
Stereo crosstalk : -96.0dB
|
|
Housing dimensions : 117 x 80 x 50 mm (D x W x H). Housing only without parts 'sticking out' like volume buttons, connector parts, etc.
|
|
Weight : 260 gram (without external power supply)
|
|
Connectivity
|
|
USB interface
|
|
Line Output : 1 x RCA jack
|
|
System Requirements
|
|
Intel® Pentium® 2, Celeron® 800MHz or higher computer system
|
|
Microsoft® Windows 2000® (Service Pack 4) or Windows® XP (Service Pack 1)
|
|
128MB RAM
|
|
Available USB port
|
|
Scope of Supply
|
|
Fubar II MKII
|
|
DC24V 0.5A power adapter
|
|
RCA wire
|
|
USB cable
|
|
User manual
|
|
Warranty card
|
|
Wrench
|
|
Why should I need a Fubar2-MKII External DAC ?
|
|
Less noise, far better sound quality, frequency range and dynamics. That’s why !
Now you can deliver Hi Fidelity music direct to you home stereo.
Fubar2-MKII is a so called external DAC system. The Abbreviation “DAC” stands for Digital to Analog Converter. Your computer sound card also has a DAC in stalled and that’s why you can plug in speaker and headphones on you PC, being analog devises. Unfortunately the most sound card electronics are cheap quality and packed dense on the printed circuit board of your soundcard. Also the sound card is located in the most electrical noisy environment possible, your pc cabinet, where EMC is raging around coming from the processor, power supply and various cooling fans that are present. These figures are not doing any good your sound quality. The real audiophiles change to expensive external DAC systems to get a HUGE improvement of sound quality. The Fubar2-MKII is such a so called External Dac System, using the USB bus for digital transfer.
With the Fubar2-MKII, you will make a dramatic sound improvement, when compared to your sound card. Just plug the USB cable form the Fubar2-MKII in your PC and the PC will automatically recognize an external DAC system, without any necessary software or drivers. This will work with Windows 98 and up, and with Apple MAC and Linux. No… you will not have any problem when you use Vista or the newest Windows 7, be sure of that !
The USB bidirectional protocol has error correction and buffering on both ends and makes sure the data on your disc is exactly the same as the Fubar2-MKII is receiving from the PC. Since the USB interface is asynchronous, clocking issues with SPDIF and CD-players are gone, resulting in very low jitter.
The hype of using a PC as a so called music server, is getting more and more popular, because also the audiophiles do hate it to pick and place a CD and put in a player every time again. Storing Terra bytes of music in loss-less format on the hard drive is the solution and let you search and select the music you want to hear in a fraction of time and start playing by just pressing a button. Terra byte storage is getting affordable. USB or Ethernet hard drives are now available at low cost and freeware like Windows media player, Apple Itunes, Media Monkey and others, are making it a piece of cake to create a playback server.
People are trying to find ways to get Hifi quality out of their system. They want sound, that can be compared with their old so long beloved normal audio systems. Now they can approach, achieve or even go beyond that sound quality, using external DAC systems.
The Fubar2-MKII is such a external DAC system, offering great value for money.
|
|
|
