SpitfireHD

The new SpitfireHD USB DAC 24Bit
USB : 24 Bit / 96kHz
SPDIF : 24 Bit / 192 kHz






210,00 EUR
Product ID: SpitfireHD

incl. 21% VAT
Available from Stock !

Quantity:   pce

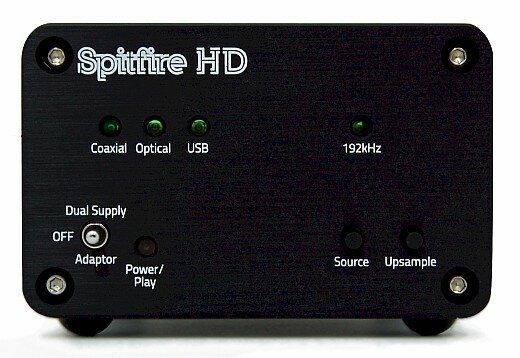

Take a closer look ! (click to view)

Features

SpitfireHD adopts whole digital input interface as USB, Coaxial and Optical and offer the selections for the users to manually choose their ideal transfer medium to satisfy the needs of sound quality. Digital Support Format is superior to Spitfire MKII as Coaxial and Optical is increased to 192kHz/24bit and USB is reached to 96kHz/24bit. Using SpitfireHD is to upgrade the sound sourcing from Computer/CD/DVD player in order to enhance the sound quality.

Specifications
Power Structure : Virtual-Ground power supply, Switching power supply
Circuit Protect : Output short / Over current protect
Support Format : S/PDIF : 24-bit, 32kHz up to 192kHz
Support Format USB : 24-bit, 44.1kHz / 48kHz / 96kHz

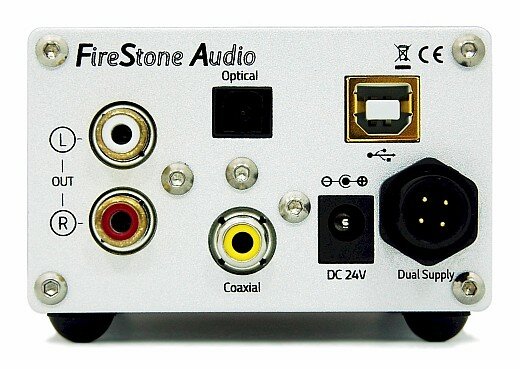

Connectivity
Power Input : Dual Supply
DC Jack (2.0mm)
S/PDIF Input : Coaxial Jack / Optical Jack
USB Interface : B-Type USB Jack
Analog Output : RCA Jack
Chips
USB Decoder : Tenor - TE7022L
Digital Receiver : AKM - AK4113
D/A Converter : TI - PCM1798
LPF OPAmp : NS – OPA2604
Audio Performance (Coaxial in, Line out, 24-bit / 48kHz)
Frequency response (40Hz ~ 15kHz) : +0.03dB ~ -0.01dB
Noise level : -117.3dB
Dynamic range : 117.1dB
THD% : 0.0002%
Stereo crosstalk : -116.3dB

System Requirements
IntelR Pentium 2, Celeron 800MHz or higher computer system
MicrosoftR Windows 2000R (Service Pack 4) or WindowsR XP (Service Pack 1)
128MB RAM
Available USB port(USB 1.1)

Scope of Supply
SpitfireHD
DC24V 0.5A power adapter
RCA wire
USB wire
User manual
Warranty card
Wrench
